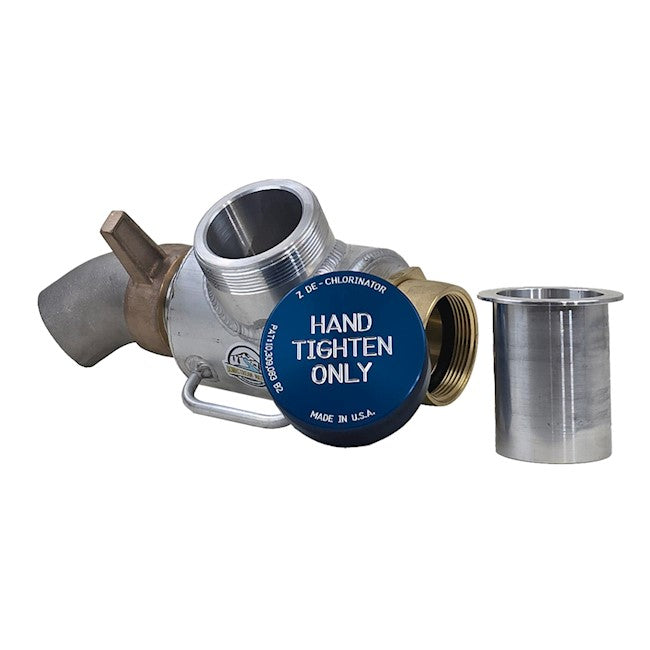

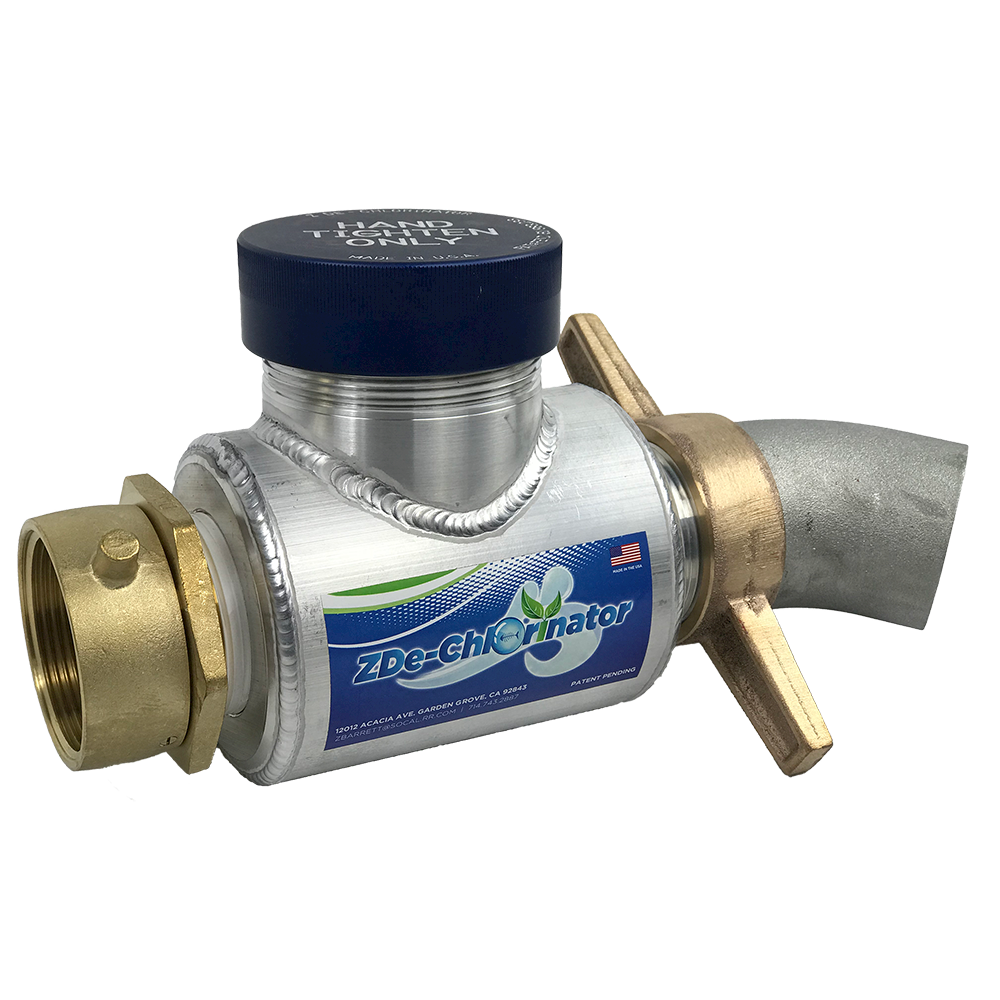

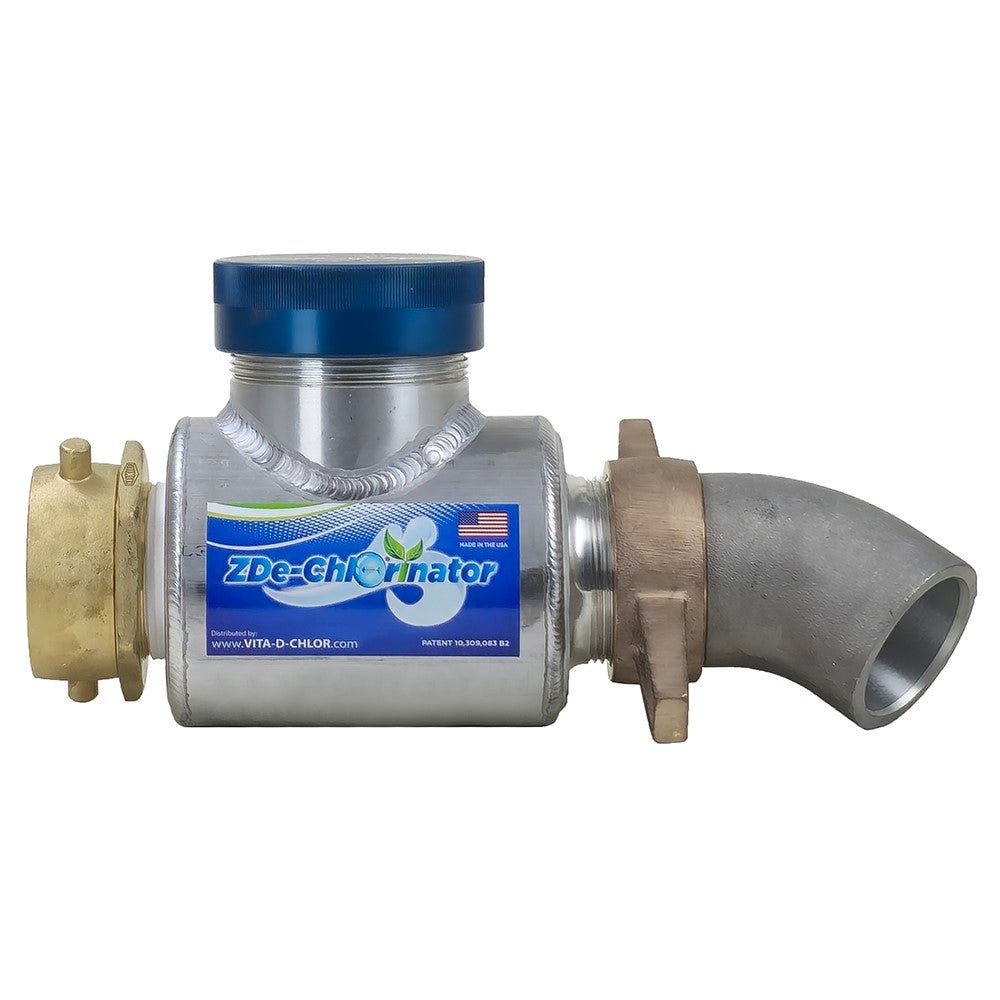

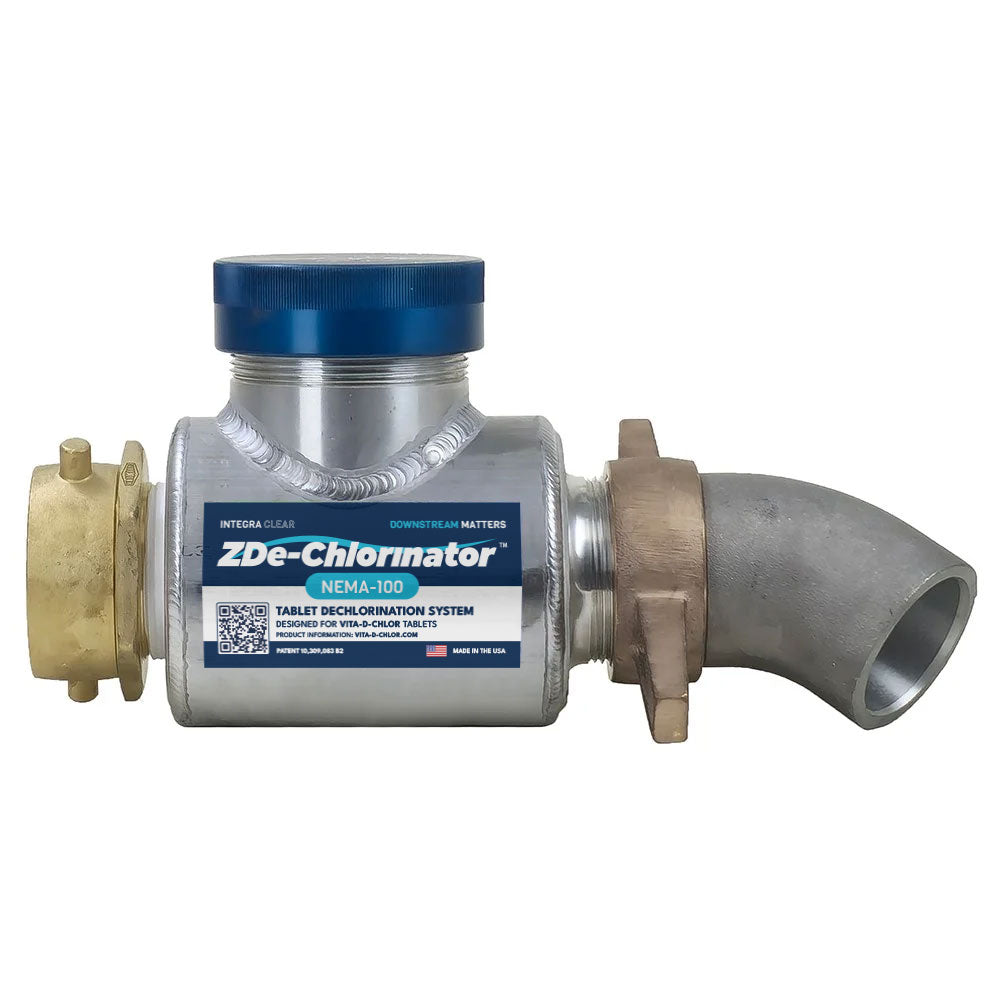

NEMA-100 Tablet Dechlorinator with 2.5" FNST Diverter

The NEMA-100 is a lightweight tablet dechlorination unit designed for dechlorinating potable water during hydrant flushing. A removable screen on the inlet end can be taken out for maximum flow or repositioned to the outlet end to accommodate flows below 200 gpm.

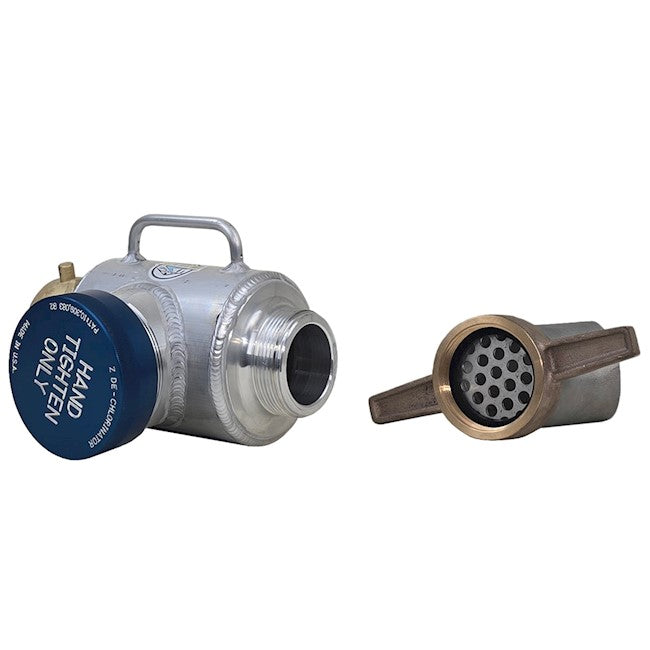

With its detachable elbow diverter, the NEMA-100 is the most versatile unit in the ZDe-Chlorinator line. Removing the elbow allows you to connect a diffuser, hose, pitot gauge, test equipment, or other accessories to meet your specific application. Constructed from aluminum, the NEMA-100 is both lightweight and economical.

This device is intended for use only with flowing water from municipal potable water systems operating below 75 psi and flows under 1,000 gpm. Using the unit for other applications may result in damage or injury.

Specifications

• Measures 16" × 6" × 8"
• Weighs just under 12 pounds
• Handles flows of approximately 200 gpm and higher
• Brass 2½" FNST swivel
• 2½" MNST outlet accepts a variety of attachments
• Holds up to four Vita-D-Chlor Tablets
• Made of aluminum
• Optional extension tube available for additional tablet capacity

Applications

• Designed for use with the dissolve rate of Vita-D-Chlor Tablets
• Some applications may also accommodate Vita-D-Chlor Slo-Tabs or other dechlorination tablets
• Sets up quickly for hydrant flushing and potable water dechlorination
• Detachable elbow can be replaced with a NEMA-400 Diffuser or NEMA-500 Pitot
• Compatible with most diffusers featuring a 2½" FNST fitting
• Accommodates lower flow rates by relocating the perforated debris screen from the inlet to the discharge side
