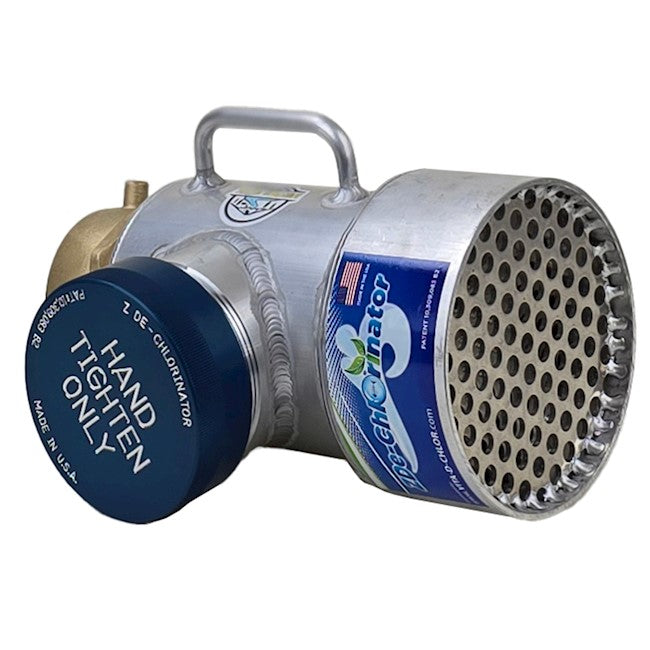

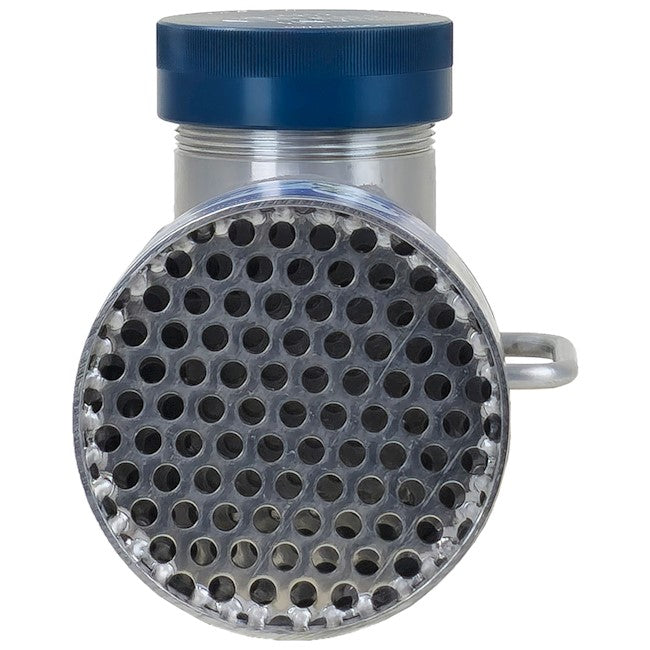

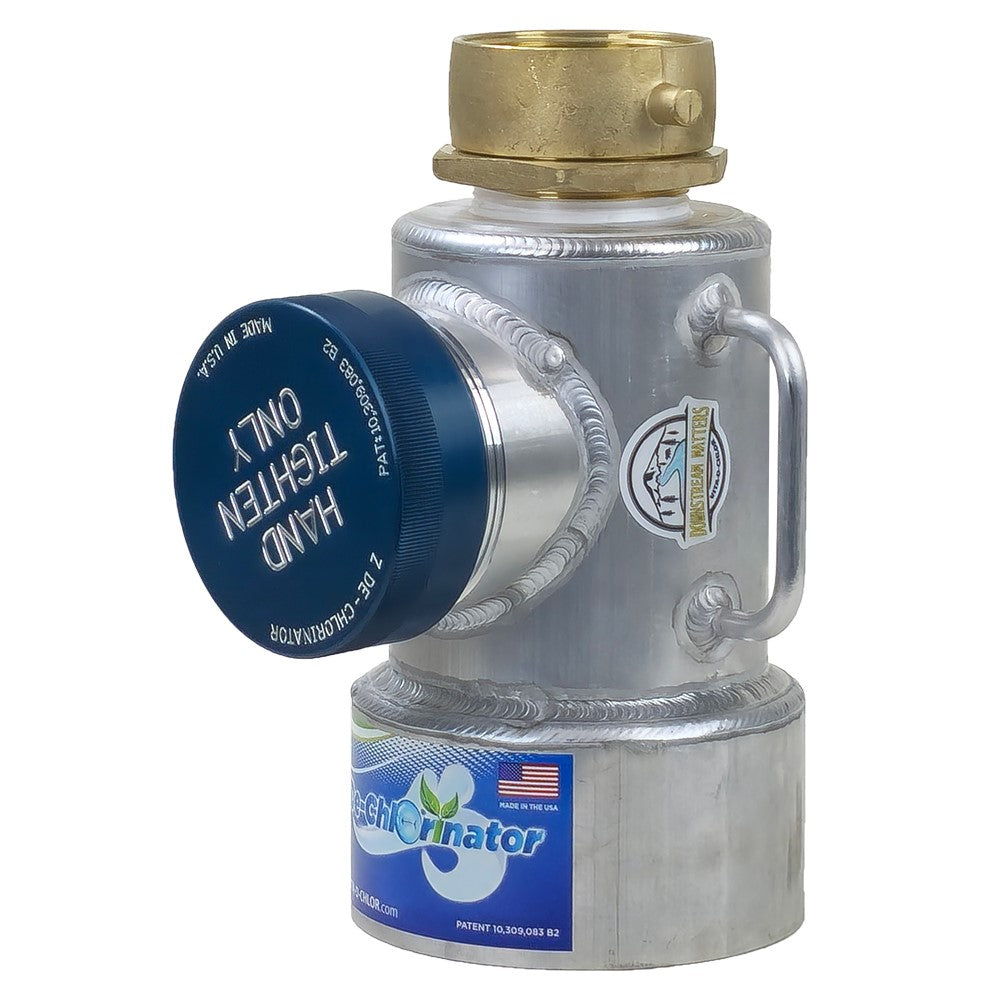

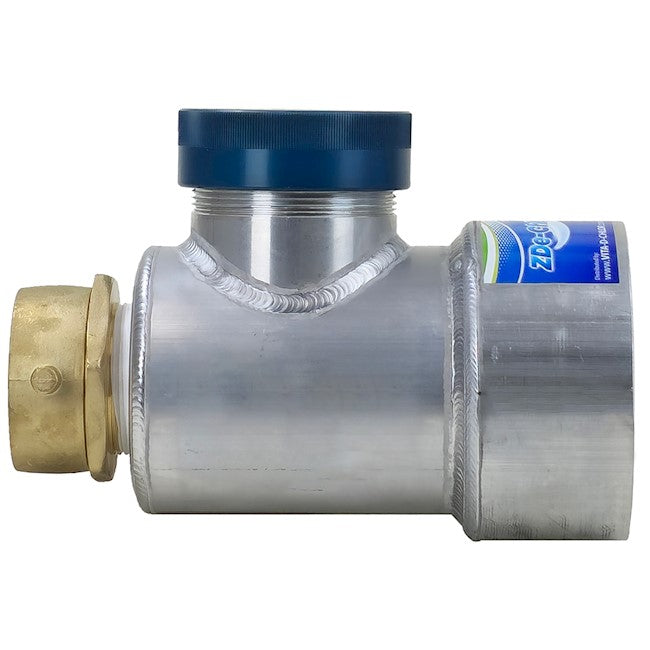

NEMA-200 Tablet Dechlorination Diffuser

The NEMA-200 is an all-in-one dechlorinator and diffuser designed for dechlorinating potable water during hydrant flushing at flows of 200 gpm and above. Constructed from aluminum, it weighs less than 9 pounds and measures 12" × 6" × 8". A brass 2½" FNST swivel allows for quick connection to a hydrant or hose, while its durable one-piece construction makes setup and operation fast and simple.

This device is intended for use only with flowing water from municipal potable water systems operating below 75 psi and flows under 1,000 gpm. Using the unit for other applications may result in damage or injury.

Specifications

• Measures 12" × 6" × 8"
• Weighs just under 9 pounds
• Handles flows of approximately 200 gpm and higher
• Brass 2½" FNST swivel
• Holds up to four Vita-D-Chlor Tablets
• Made of aluminum
• Optional extension tube available for additional tablet capacity

Applications

• Designed for use with the dissolve rate of Vita-D-Chlor Tablets
• Some applications may also accommodate Vita-D-Chlor Slo-Tabs or other dechlorination tablets
• Integrated rock screen and diffuser provide all-in-one operation
• Ideal for fast and efficient hydrant flushing of potable water
• Lightweight design helps reduce operator fatigue during flushing operations
