VDC Infuser

The VDC Infuser allows for prolonged flushing times and for treatment of much higher residual chlorine levels than tablets can typically accommodate. The VDC Infuser adapts existing tablet dechlorination devices for use with a liquid Vita-D-Chlor solution. If you don’t have a compatible tablet device and don’t need one, a VDC Infuser elbow is available that connects directly to the hydrant or hose.

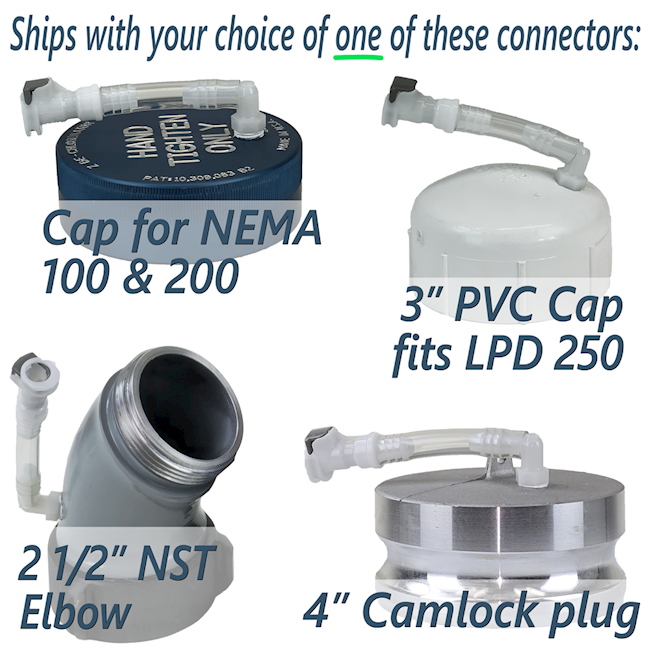

The VDC Infuser ships with one of four connectors, all of which have the proper VDC Infuser snap hose fitting for fast and easy set-up. When ordering, choose the connector you need from the drop-down box.

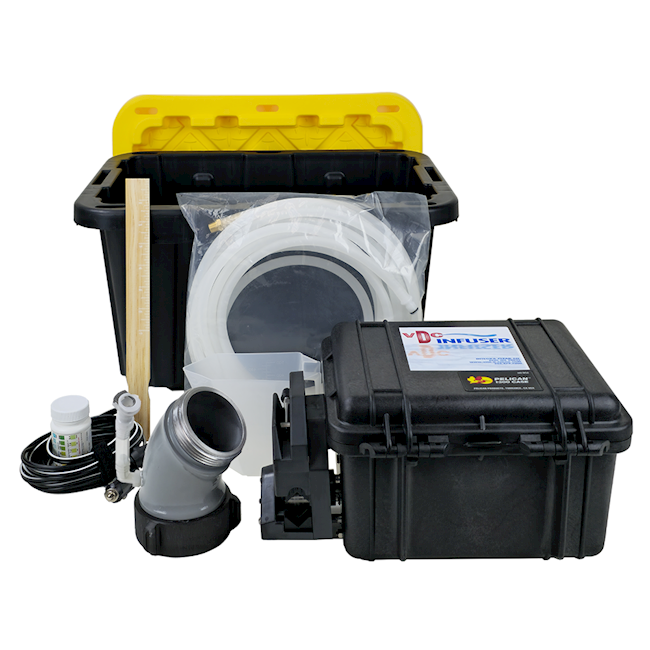

• 2 ½” NST elbow – connect directly to the hydrant or hose with this aluminum swivel elbow
• Cap for NEMA 100 & 200 – an aluminum cap that fits our popular ZDe-Chlorinator NEMA 100 & NEMA 200 tablet diffusers
• 3” PVC Cap for LPD -- fits the LPD-250 tablet diffusers & similar devices

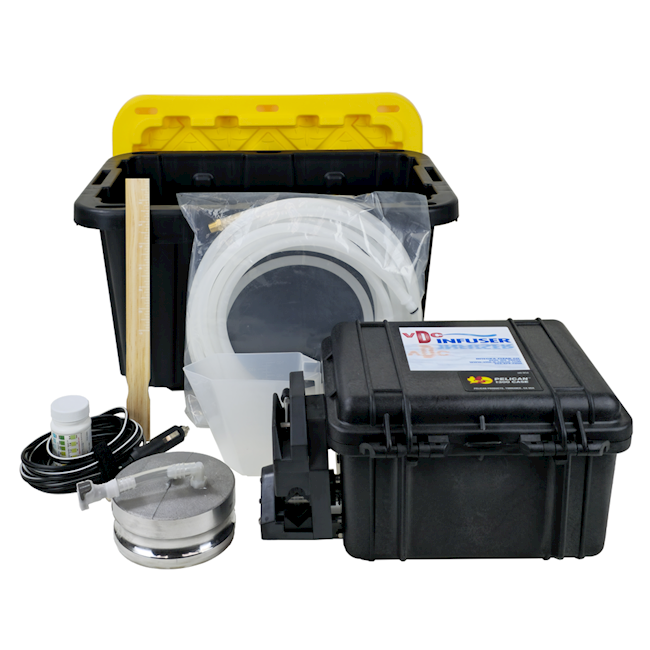

• 4” Camlock plug -- fits the Pollardwater TruckFlush

The VDC Infuser requires 12 volt power, either from your vehicle or from your own 12 volt portable power source. (Jackery and Bluetti are popular brands.)

Diffusers, power source, and Vita-D-Chlor are not included.

Specifications

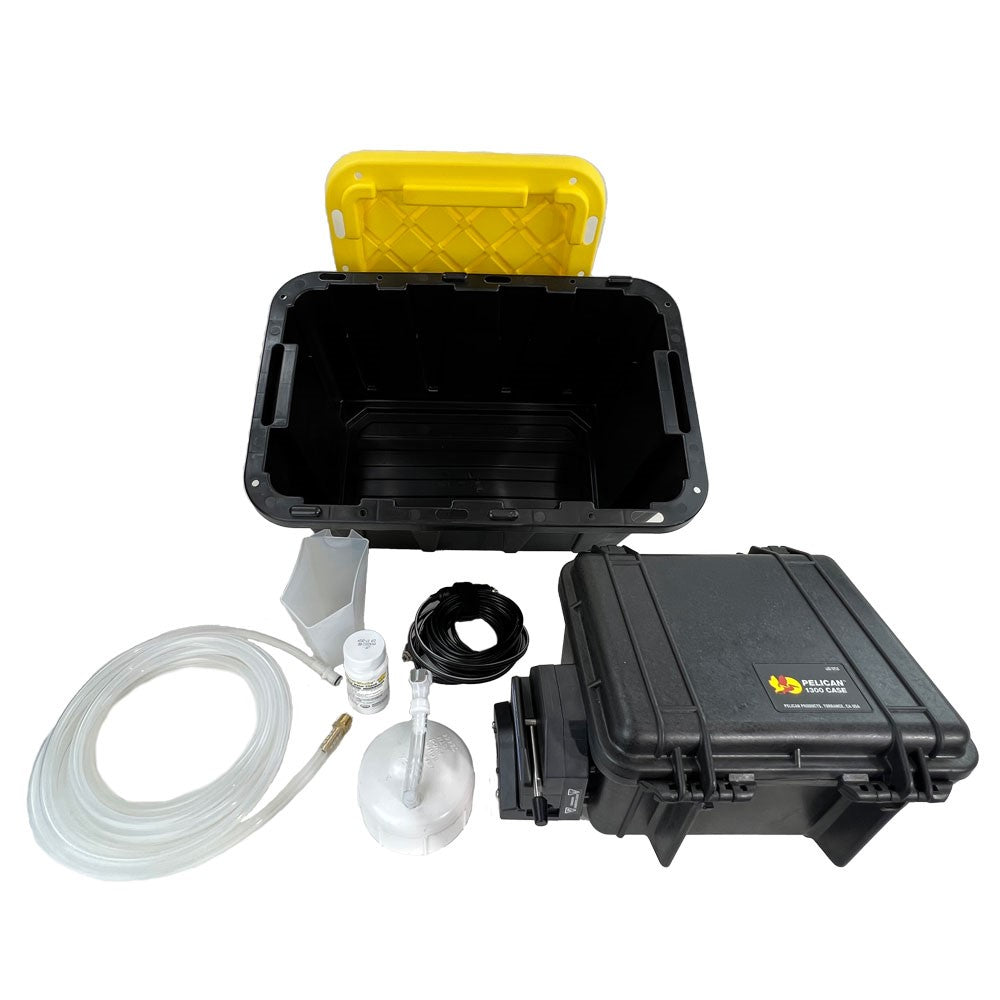

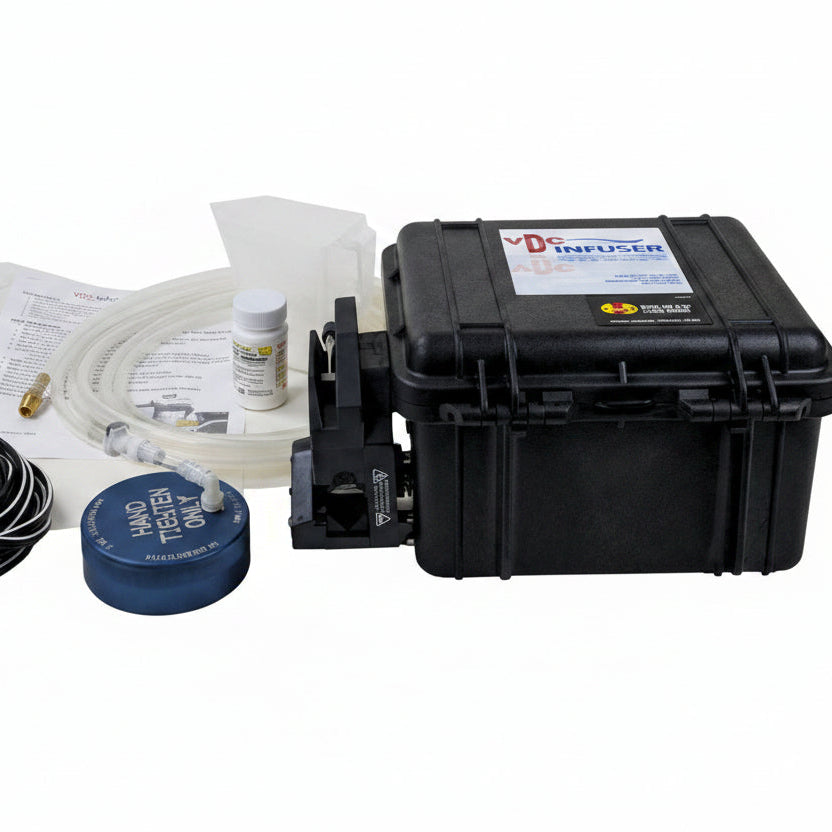

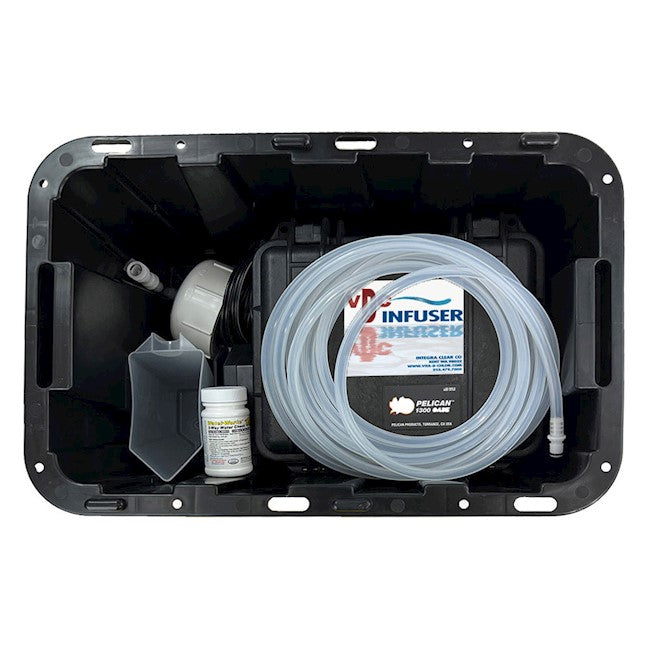

• Contents: The VDC Infuser consists of a peristaltic pump, one of four connectors, 25 feet of tubing, all necessary tube fittings, a double-ended 12 volt power cord, a 2 cup scoop, 50 chlorine test strips and a handy stir stick. Everything is packaged together in a convenient carrying tote that can double as a mixing container for the Vita-D-Chlor feed solution. Instructions included, along with a suggested speed chart inside the pump lid.
• Weight: 12 pounds
• Dimensions: 19” x 13” x 10”
• Capable of treating chlorine levels of 10 ppm in flows of 2500 gpm
• Capable of treating chlorine levels of 100 ppm in flows of 500 gpm
• We suggest this product be used with Vita-D-Chlor Neutral

Always dechlorinate in well-ventilated areas. Take extra respiratory caution when neutralizing high chlorine levels (greater than 5 ppm)

Diffusers, power source, and Vita-D-Chlor are not included.

Applications

The VDC Infuser is well-suited for the following dechlorination applications:

• Multi-hour flushing sessions
• Flushing superchlorinated water from new main installations
• Multi-day flushing of low chlorine levels
• Higher flow volumes off the 4.5” pumper port (requires the 4.5” Infuser Elbow accessory)
